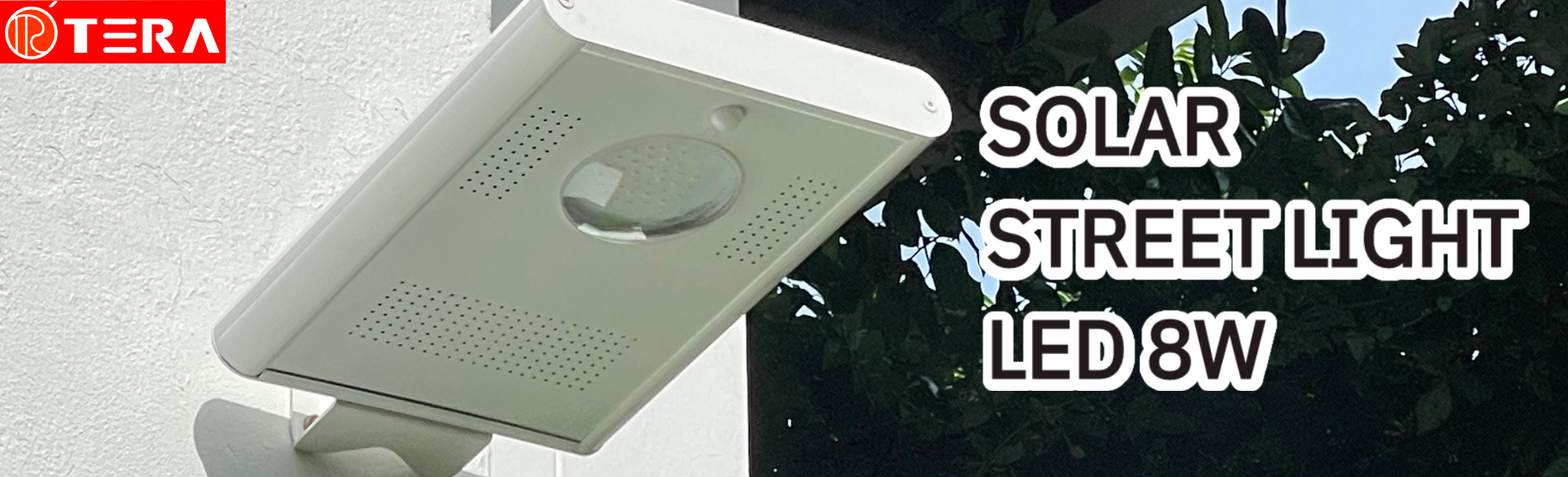

SOLAR STREET LIGHT LED 8W
| Features |
- Solar Panel : 18W Monocrystalline A Grade solar panel, high efficiency solar cells, high fill factor module.
- Battery : High performance lithium battery with 3-5 rainy day’s back-up. Hermetically-sealed & waterproof protection cover.
- Connector : Waterproof connector for street light exclusive use.
- Switch : Stainless steel waterproof switch
- Sensor : Human body sensor with IP 65 protection grade.
- LED : 8W Epister LED Chips (66pcs,10x18mil),120lm/W high luminous efficacy. Golder wire, BSOB wire bond. High quality waterproof silicone gasket.
- Controller : IP67 protection grade. Time+Light+PIR Control
- Radiator : 2.0 thermal conductivity and faster heat radiation, ensure the lifespan of LED.
Product specifications
| Parameters | |
| Solar Panel | 18V/18W Monocrystalline Solar Panel,Grade A |
| LED | 8W, 10*18mil Epistar Chip |
| Lifespan of LED | More Than 50,000 Hours |
| Luminous Flux | 880lm~960m |
| Color Temperature | 3000K~7500K |
| Beam Angle | 120° |
| Battery | 12V, 10AH Li-ion lithium battery or 12.8V 63AH LiFePO4 Lithium Battery |
| Discharging Time | 18h (100% power), 42h (energy saving mode) |
| Charging Time | 7h(AM1.5,1000W/m2,25℃) |
| Material | 6063 Aluminum,PC |
| Working Temperature | -25℃~55℃ |
| Diameter of Mounted Lamppost | 60~89mm |
| Mounting Height | 3~4m |
| Mounting Space | 10~15m |
| Packing Size | 570*370*110mm |
| Net Weight | 5KG |
| Gross Weight | 5.9KG |
| Control Mode | Light, time and PIR control |
| Package Quantity | 800 sets/20′ GP, 1600 sets/40′ GP |

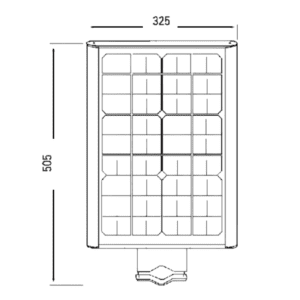

| Size Chart (mm.) |
| Application Areas |
Solar street light can used in public areas and residential areas.
- Road and Street
- Office buildings
- Garden, Parks
- Residential areas
| FAQ |
- How many hours can the light work?
✅ Normally, after fully charged, the light can work ≥18h(100% power). PIR contrlo:100% power when people approaching,, 30% power if nobody passes. - How many rainy days can the light work?
✅ The light can work for 2~3 rainy days. - How does the light work?
✅ The light is fully antuomatic light control. During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside - Can we buy samples?
✅ Yes. Please contact with our sales for sample order conditions. We will recommend you the suitable models according to your areas. - What’s your warranty?
✅ We provide 1 years warranty for compelet set of light.
